The Importance of IC Packaging
IC packaging plays a vital role in connecting and protecting semiconductor devices. However, various failure modes can impact performance and reliability. This blog summarizes five classic failure cases often observed in semiconductor manufacturing and assembly. Understanding these failures is crucial for improving the quality and longevity of semiconductor products.
1. Wire Bond Lift-Off
Wire bond lift-off often occurs in leaded packages. The root causes include poor solder mask printing, insufficient solder wetting, and environmental fluctuations during the process. Industry best practices involve high-precision solder paste printing, real-time process monitoring, and optimized nitrogen reflow. These approaches, combined with advanced inspection and upgraded soldering infrastructure, minimize risk and ensure solder joint reliability.

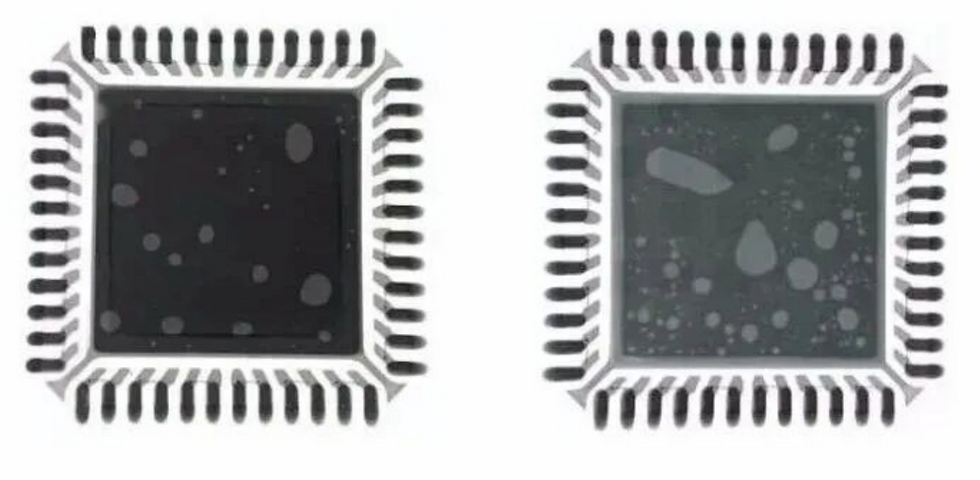

2. Solder Ball Voiding Defects
Voids in solder balls primarily form due to oxidation, incomplete flux removal, and suboptimal reflow processes. Solutions include precise environmental control during reflow, stepwise temperature ramping, and a nitrogen atmosphere. Additionally, 3D X-ray and AI-powered inspection systems improve defect detection. New solder paste formulations have greatly reduced void incidence rates, enhancing overall reliability.
3. Die Cracking & Interface Fracture
Die cracking and interface fractures are common during wire bonding. These issues are often linked to ESD, handling damage, or thermal mismatch. Early detection techniques, such as Scanning Acoustic Microscopy (C-SAM) and FEM simulation, are essential. Newer AI techniques help with targeted localization and predictive analysis. These methods are crucial for ensuring device reliability in high-density IC packages.
4. Substrate Delamination
Substrate delamination typically results from soldering, thermal cycling, or coefficient of thermal expansion (CTE) mismatch. Industry solutions include reinforced substrates, optimized soldering approaches, advanced redistribution layer (RDL) technology, and smart 3D inspection. TSV reinforcement and automated AI monitoring systems further improve reliability.
5. Warpage During Reflow
Package warpage is mainly driven by thermal stress and CTE mismatch during reflow. Innovations such as online temperature and curvature monitoring, CTE-optimized substrates, and 3D real-time measurement technologies help maintain warpage control under 50 µm. This minimizes assembly and operational risks.
6. Solder Ball Insufficiency
Solder ball insufficiency is commonly observed in ball grid array (BGA) or leadless package types. The root causes are often related to stencil printing precision, solder paste wetting properties, and process environment control. According to the latest industry practices, utilizing laser-cut stainless steel stencils with nanocoating can significantly improve aperture precision. This restricts paste printing deviation to within ±25 μm. Additionally, optimizing solder paste formulations to reduce surface tension, combined with nitrogen reflow environments, can lower the occurrence rate of solder ball defects.
For moisture-induced solder ball problems during reflow, new generation intelligent solder paste management systems enable full-process temperature and humidity monitoring. This monitoring occurs from storage to placement, and vacuum agitation ensures homogeneity, effectively preventing solder ball defects caused by water vaporization.
7. Package Warpage
Warpage arises due to internal stress relief mechanisms associated with mismatches in the coefficient of thermal expansion (CTE) among heterogeneous materials. During reflow soldering, thermal expansion mismatches among the die, substrate, and solder can lead to overall nonuniform package deformation. This manifests as package warpage.
Currently, the industry employs sophisticated multi-parameter control and warpage suppression measures. These include low-CTE composite substrate materials, dynamic preheating, adjusted reflow profiles, and real-time warpage monitoring with laser-based 3D metrology. Notably, AI-driven adaptive process parameter systems are being gradually deployed in high-end packaging lines. These systems optimize process control based on machine learning predictions, keeping warpage within 50 μm.
8. Solder Void Formation
The mechanism behind void formation in solder joints is complex. It involves oxidation of metallic solder powder, contamination ingress, and temperature ramp rate control, among other factors. Presently, the industry promotes vacuum reflow in combination with high-purity oxygen-free solder. This reduces dissolved oxygen to below 50 ppm and utilizes stepwise temperature ramp-up strategies that keep void rates under 3%.
Furthermore, the integration of 3D X-ray imaging and advanced C-mode scanning acoustic microscopy (C-SAM) enables non-destructive, in-depth detection of internal solder joint defects. With the aid of AI-based defect recognition algorithms, these tools allow precise localization of voids, cracks, and latent reliability risks. This drives assembly yield rates above 99.9%.
Conclusion
As chips evolve for AI and 5G, packaging requirements are rising. Intelligent process control, advanced inspection, and new materials are pushing defect rates down and reliability up. The industry is rapidly moving toward predictive, data-driven prevention, supporting robust, next-generation electronics.
By understanding and addressing these common failure modes, manufacturers can enhance the reliability and performance of their semiconductor devices. This proactive approach is essential for meeting the growing demands of modern technology.
