Understanding the Basics of Semiconductor Chip Assembly

Semiconductors are the backbone of modern electronics, making their assembly a crucial process in the tech industry. Today, we’ll delve into the world of semiconductor chip assembly, covering its importance, processes, and materials involved.

What is Semiconductor Assembly?

Semiconductor assembly refers to the process of packaging semiconductor devices after they have been manufactured. This critical stage ensures that the chips are ready for integration into electronic devices. Assembly involves various intricate steps, including placing the chip into a protective housing, connecting it to external circuits, and ensuring it meets the required specifications.

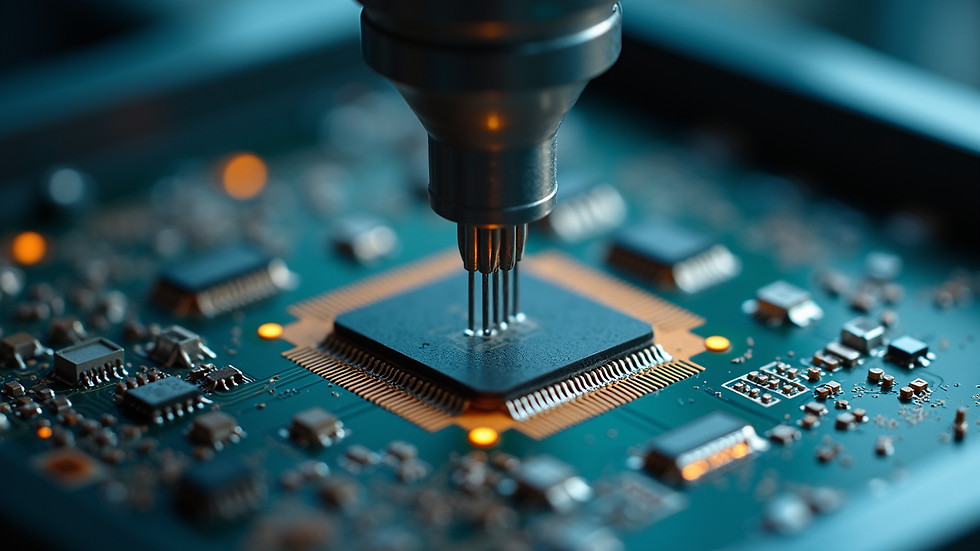

Semiconductor chip assembly process under magnification.

The semiconductor assembly process protects the delicate components from damage while enabling them to perform effectively. For instance, without proper assembly, chips can be vulnerable to environmental factors like moisture and contamination, leading to failures in devices they power.

Notably, the scale of the semiconductor industry is significant. According to the Semiconductor Industry Association (SIA), worldwide semiconductor sales reached a staggering $440 billion in 2020, reflecting the growing need for these components across various sectors.

Key Steps in Semiconductor Assembly

The semiconductor assembly process consists of several key steps. Understanding these can provide insight into why this process is so vital for the electronics industry.

1. Wafer Dicing

The first stage in semiconductor assembly is wafer dicing. Wafers, which are thin slices of semiconductor materials, are diced into individual chips. This process requires high precision to ensure that the chips are uniform in size and free from defects. The dicing process involves cutting the wafer using laser technology or saws.

Wafer dicing being performed with precision technology.

2. Chip Mounting

Once the chips are diced, they need to be mounted onto a substrate or package. This stage involves the use of adhesives and precisely controlled machinery. The placement must be accurate to guarantee optimal electrical connections between the chip and its package.

3. Wire Bonding

After mounting, the chip undergoes wire bonding. This step is vital for connecting the chip to external circuitry. Fine wires, usually made of gold or aluminum, are attached to bonding pads on the chip and the package. This forms the necessary electrical connections, allowing for data transfer and power supply.

Precision wire bonding connects semiconductor components.

4. Encapsulation

Next, the chips are encapsulated to protect them from environmental risks. Encapsulation materials can include epoxies or molding compounds. This protective layer enhances the durability of the device, allowing it to withstand physical and chemical stressors.

5. Testing

After encapsulation, rigorous testing occurs to ensure the reliability of the semiconductor devices. Electrical tests check for operational effectiveness, while environmental tests might evaluate how the device performs under various conditions. Only those chips that pass all tests proceed to the next stages.

6. Final Packaging

The final step in semiconductor assembly is packaging. This involves placing the chips into protective boxes or trays for shipping. Proper packaging ensures that the chips remain safe during transit and storage, reducing the risk of damage before they reach manufacturers or consumers.

Materials Used in Semiconductor Assembly

Understanding the materials involved in semiconductor assembly is essential. Different materials serve specific purposes in ensuring that the chips function effectively.

Silicon Wafers

Silicon is the primary material used in semiconductor manufacturing. Its unique electrical properties make it an ideal choice for creating integrated circuits.

Adhesives

Specialized adhesives play a crucial role in securing components together during assembly. These adhesives are designed to withstand thermal and mechanical stresses, maintaining their integrity over time.

Metals for Wiring

Gold and aluminum wires are predominantly used for wire bonding due to their excellent conductivity. The choice of metal can impact the overall performance of the semiconductor.

Encapsulation Materials

Encapsulation materials are essential for protecting chips. Epoxies and thermoplastics are common, providing a strong shield against environmental factors.

The Role of Chip Bonding in Assembly

One significant aspect of semiconductor chip assembly is chip bonding. This technique ensures that chips connect to external circuits effectively. Chip bonding involves several methods, including wire bonding and flip-chip bonding. Each method has its advantages, often determined by the specific application and requirements of the device.

For example, flip-chip bonding allows for a smaller form factor, making it ideal for compact electronic devices. On the other hand, traditional wire bonding may be preferred for its reliability in certain applications.

Challenges in Semiconductor Assembly

The semiconductor assembly process is not without its challenges. As technology advances, manufacturers are faced with increasing demands for speed, reliability, and miniaturization.

Quality Control

Maintaining high-quality standards during assembly is crucial. Defects can cause significant problems in electronic devices, leading to costly recalls or replacements. Companies invest in automated inspection systems to ensure that every chip meets quality benchmarks.

Environmental Concerns

The semiconductor assembly industry faces environmental challenges as well. The disposal of chemicals and waste materials used in the process raises concerns about sustainability. Many companies are now transitioning to eco-friendly materials and practices.

Supply Chain Issues

Global supply chain disruptions can impact semiconductor assembly. Delays in component availability or increased shipping costs can hinder production timelines. Companies are exploring more localized supply chains to mitigate these issues.

Future Trends in Semiconductor Chip Assembly

As technology evolves, so does the field of semiconductor assembly. Here are some trends to watch in the coming years.

Advanced Packaging Techniques

New packaging techniques are emerging, such as system-in-package (SiP) and 3D packaging. These methods enable more compact designs with greater functionality, catering to today's miniaturized devices.

Automation and AI

The integration of automation and artificial intelligence (AI) in the assembly process can significantly enhance efficiency and precision. Smart machines can learn and adapt to optimize production, reducing errors and increasing throughput.

Sustainability Practices

The industry is moving towards sustainable practices, including the use of eco-friendly materials and processes. This shift aims to reduce the environmental impact of semiconductor manufacturing while ensuring high performance.

Embracing the Future of Semiconductor Assembly

As we conclude our exploration of semiconductor chip assembly, it's clear that this process plays a vital role in the functioning of electronic devices. The advancements in technology and materials are shaping the future of semiconductor assembly, promising greater efficiency and sustainability.

While challenges remain, ongoing research and innovation will drive the industry forward, enabling new possibilities for electronics in the ever-connected world we live in today. Embracing these advancements will ensure that we continue to thrive in the evolving landscape of technology.
